ASTM A192 boiler tubes from China manufacturer - Cangzhou Qiancheng Steel-Pipe Co., Ltd.

Price:	600.0~1200.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Seamless ASTM A192

Production Capacity: 400000 tons/year

Delivery Date: 15~45days after the first p...

Grade: sa-192

Brand: QCCO

WT: 2.77-59mm

Means of Transport: Ocean,Air

Packing: coating, caps and in bundle...

Type: Seamless ASTM A192 boilerst...

Certificate: API 5L ISO9001 EU PED-9...

OD: 21.3-914.4mm

seamless carbon boiler tubes for high-pressure service

ASTM A192/A192M Seamless Carbon Steel Boiler Tubes

Seamless Carbon Steel Boiler Tubes for High-Pressure Service

_{Detailed Description:}

Seamless Carbon Steel Boiler Tubes for High-Pressure Service
Standard: ASTM A192/A192M (ASME SA192/SA192M)
Size:(mm)
Out Dimensions:21.3-914.4
Wall Thickness:2.77-59
Length: Fixed(6m,9m,12m) or normal length(5-12m)

Application:
Seamless Carbon Steel Boiler Tubes for High-Pressure Services

Mill test certificates will be issued according to EN 10204/3.1B

Packing:

Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test, Nodestructive Test, Hydrostatic Test.

Surface treatment:
Oiled, Black Painted, Shot Blasted, Hot dipped galvanized or phosphate coating

Mark:
As requested.

Chemical Compositions(%)

C	Si	Mn	P	S	Cr	Mo	Cu	Ni	V
0.06-0.18	≤0.25	0.27-0.63	≤0.035	≤0.035	/	/	/	/	/

Mechanical Properties

Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
≥180	≥325	≥35

About us:

Cangzhou Qiancheng Steel-Pipe Co., Ltd. is located on the Industrial Zone, YanshanCounty,Hebei Province. It is one of the largest enterprises that specialize in producing and selling steel pipes and pipe fittings in North China. It is of convenient transportation as it is only 200 km away from Xingang, Tianjin, China.

Our company covers an area of 150,000 m2 with a total assets of 250 million Yuan. There are 360 staff members including 80 technicians in our company. We also establish an effective complete quality control system. In 2006,our company obtained the certificate of ISO9001 Quality System Authentification, Certificate of the EU PED-97-23-EC Quality Management System in 2008 and it started to run in accordance with API 5L in 2009,passed CPD-93/68/EEC certificate in 2011.

Our company is equipped with sophisticated manufacturing and testing equipments, and a complete testing system has been established which includes advanced testing equipments, such as X-ray detector, ultrasonic wave detector, hydrostatic tester, tension tester, metallurgical analyzer and physical & chemical lab, etc. These equipments and technologies guarantee that the production and testing processes are up to relevant standards, so that the products are satisfied by the requirements of clients doubtlessly.

Our products mainly include seamless steel pipe, hot-finished steel pipe, stainless steel pipe, pipe fittings, flange and supporting tubing, etc. Those products are not only sold to domestic large-scale enterprises, such as thermal power plant, chemical plant and power engineering, but also exported to USA, Italy, Germany, Malaysia, Thailand, South Korea, Kuwait, Czech, Indonesia, Hong Kong, India, Iran, Singapore and other countries and regions.

With powerful financial strength, advanced managerial concept, excellent marketing service, strict quality control system and the whole scientific method, we would like to develop together with you hand in hand. Adhering to the operation principle of "Faith First, Clients Uppermost", we will return you with high-quality products and complete after-sale service with the lowest price. We sincerely hope to establish long-term cooperation relationship with you on the basis of mutual benefit, reciprocity and common development!

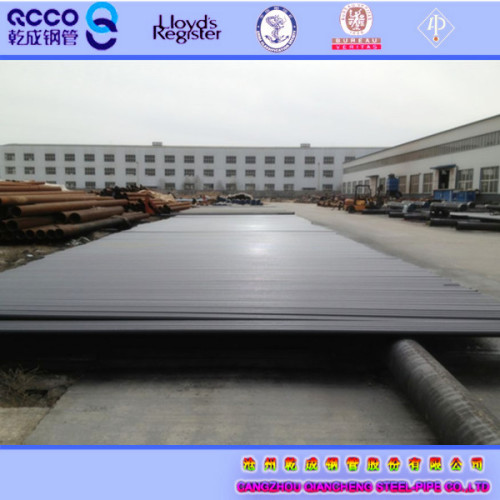

Products Photos:

Seamless ASTM A192 boilersteel pipe
