Carbon steel seamless gas line pipe API 5L GR.B from China manufacturer

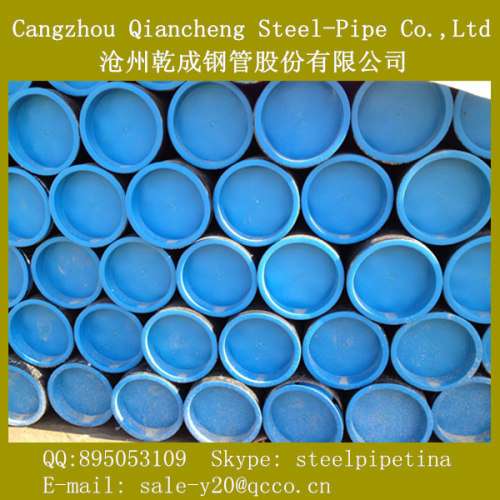

Carbon steel seamless gas line pipe API 5L GR.B

Price:	740.0~987.0 USD
Payment Terms:	T/T,L/C
Special Groups:	Line Pipe (226)
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: API 5L GRADE B

Production Capacity: 5000 Ton/Month

Delivery Date: within 30-45 days after rec...

Type: Seamless/Welded(LSAW ERW SS...

WT: 2-60mm SCH10-SCHXXS

Ends: PE. BE. Threaded,Grooved,Co...

Testing Methods: Eddy current testing, Hydro...

Certificates: ISO,API,CE,PED

Means of Transport: Ocean,Land,Air

Packing: in bundles/in loose pieces;...

Product Name: Seamless Pipe API 5L GR.B

OD: 17-914mm 3/8"-36"

Length: 5-14m 5.8m,6m,11.8m,12m

Surface Treatment: Bare,Painting black,varnish...

Third Party Inspection: SGS BV MTC

Seamless Carbon Steel Pipe API 5L Grade B for conveying gas oil and water
O.D:1/2"-56" W.T:SCH10-XXS Length:Fixed/Random 5-14m
Ready stock

CARBON STEEL SEAMLESS LINE PIPE-API 5L GR.B

Mechanical Properties

Standard	Class	Grade	Min/Max	Yield strength (Mpa)	Tensile Strength (Mpa)	Elongation(%)	Y.S./T.S.(%)
API 5L	PSL1	B	min	245	415	b	-
		X42	min	290	415	b	-
		X46	min	320	435	b	-
		X52	min	360	460	b	-
		X56	min	390	490	b	-
		X60	min	415	520	b	-
		X65	min	450	535	b	-
		X70	min	485	570	b	-
	PSL2	BN	min	245	415	b	0.93
		BN	max	450	760	b	-
		X42N	min	290	415	b	0.93
		X42N	max	495	760	b	-
		X46N	min	320	435	b	0.93
		X46N	max	525	760	b	-
		X52N	min	360	760	b	0.93
		X52N	max	530	760	b	-
		X56N	min	390	490	b	0.93
		X56N	max	545	760	b	-
		X60N	min	415	520	b	0.93
		X60N	max	565	760	b	-
		X65M	min	450	535	b	0.93
		X65M	max	600	760	b	-
		X70M	min	485	570	b	0.93
		X70M	max	635	760	b	-
		X80M	min	555	625	b	0.93
		X80M	max	705	825	b	-

Chemical Composition

Standard	Class	Grade	C	Si	Mn	P	S	V	Nb	Ti
Standard	Class	Grade	max	max	max	max	max	max	max	max
API 5L	PSL1	B	0.28	-	1.20	0.030	0.030	-	-	-
		X42	0.28	-	1.30	0.030	0.030	-	-	-
		X46	0.28	-	1.40	0.030	0.030	-	-	-
		X52	0.28	-	1.40	0.030	0.030	-	-	-
		X56	0.28	-	1.40	0.030	0.030	-	-	-
		X60	0.28	-	1.40	0.030	0.030	-	-	-
		X65	0.28	-	1.40	0.030	0.030	-	-	-
		X70	0.28	-	1.40	0.030	0.030	-	-	-
	PSL2	BN	0.24	0.40	1.20	0.025	0.015	-	-	0.04
		X42N	0.24	0.40	1.20	0.025	0.015	0.06	0.05	0.04
		X46N	0.24	0.40	1.40	0.025	0.015	0.07	0.05	0.04
		X52N	0.24	0.40	1.40	0.025	0.015	0.10	0.05	0.04
		X56N	0.24	0.40	1.40	0.025	0.015	0.10	0.05	0.04
		X60N	0.24	0.40	1.40	0.025	0.015	0.10-	0.05	0.04

Type		Seamless/LSAW carbon steel line pipe
Executive Standard		API SPEC 5L,GB/T 9711.1,GB/T 9711.2,GB/T 9711.3,SY/T5037
Materials		PSL1—B X42/X46/X52/X56/X60/X65/X70 PSL2—B X42/X46/X52/X56/X60/X65/X70/X80
Size	Outer Diameter	Seamless 17-914mm 3/8-36 inch LSAW 457-1422mm 18-56 inch
	Wall Thickness	2-60mm SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
	Length	Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request
Ends		Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc
Surface Treatment		Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
Technical Methods		Hot-rolled/Cold-drawn/Hot-expanded
Testing Methods		Eddy current testing, Hydrostatic testing or Ultrasonic examination, NDT and also with chemical and physical property inspection
Packaging		Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven bags; Suitable for lifting operation; Loaded in 40ft or 20ft container or in bulk Also according to customer's requests
Application		Conveying oil gas and water
Origin		Hebei Prov.China
Certificates		API ISO PED Lloyd's (ISO 9001 in 2006,EU PED-97-23-EC in 2008,API 5L in 2009, CPD-93/68/EEC in 2011)
Third Party Inspection		SGS BV MTC
Trade Terms		FOB CIF CFR
Payment Terms		FOB 30%T/T,70% before shipment CIF 30% pre-payment and the balance to be paid upon B/L (copy) or Irrevocable 100% L/C at sight
MOQ		10 tons
Production Capacity		5000 T/M
Delivery Time		Usually within 30-45 days after receipt of advance payment

Main products: Seamless steel pipe

Line Pipe:API 5L(psl1,psl2)

Alloy-Steel Pipe for low temperature service: A333(GR.1 GR.3 GR.4 GR.6 GR.7...)

Boiler Pipe: A106 A210,DIN17175,GB 3087,GB 5310,JIS G 3461

Ferritic Alloy-Steel pipe for high temperature service:A335 (P1 P2 P5 P9 P11 P15 P22 P91...)

Fluid Tube: A53 A106, GB/T 8163, JIS G3454 3455 3456

Mechanical Tube: A519

Structural Tube: GB/T 8162(Q345B...) DIN1629

Tubing and Casing Pipe: API 5CT (J55,K55,N80,L80-1,P110...)

Tube for pipeline,pressure vessel: EN10216-1 EN10216-2

Seamless Circular Steel Tubes for mechanical and general engineering purpose: EN10297-1( alloy & non-alloy )

Hot-finished structural hollow sections of non-alloy and fine grain steels: EN 10210-1

Stainless steel pipes

ERW LSAW SSAW steel pipe

Pipe Fittings: Bend Elbow Reducer Tee Cross Flange...

Company Advantages:
Best quality (original steel tubes from TPCO/Hengsteel(Hengyang valin)

/Shanghai Baosteel/Baotou Steel/Anshan...)

Large stock of various sizes and grades of steel pipes

Speedy delivery

Sample can be sent for testing

Customized design available
